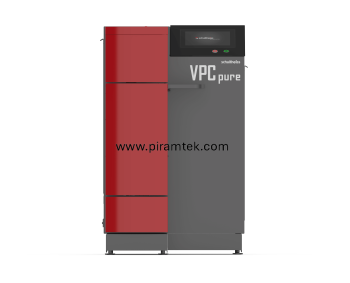

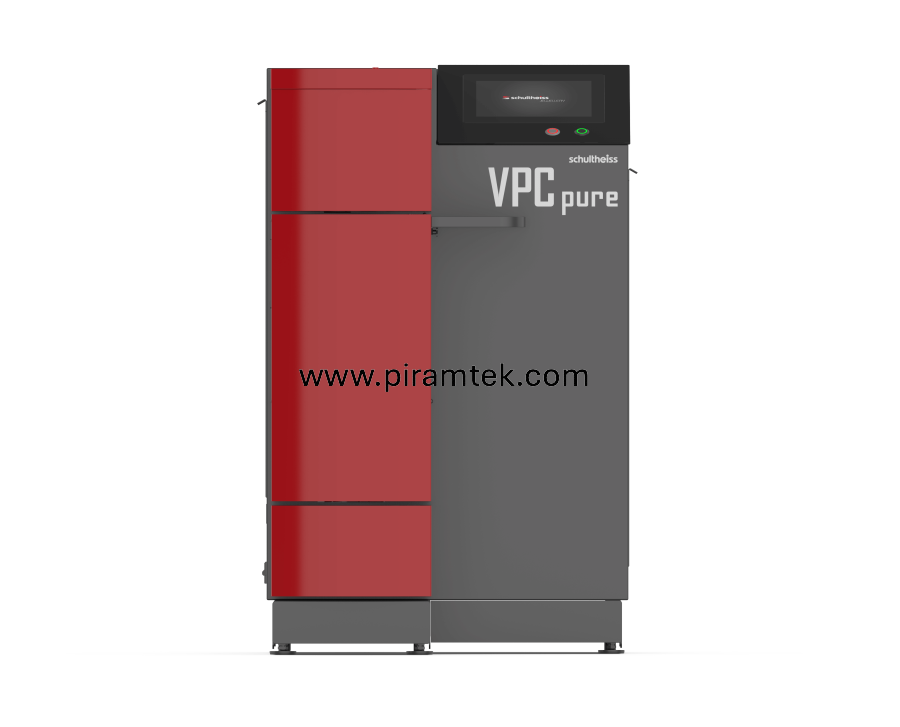

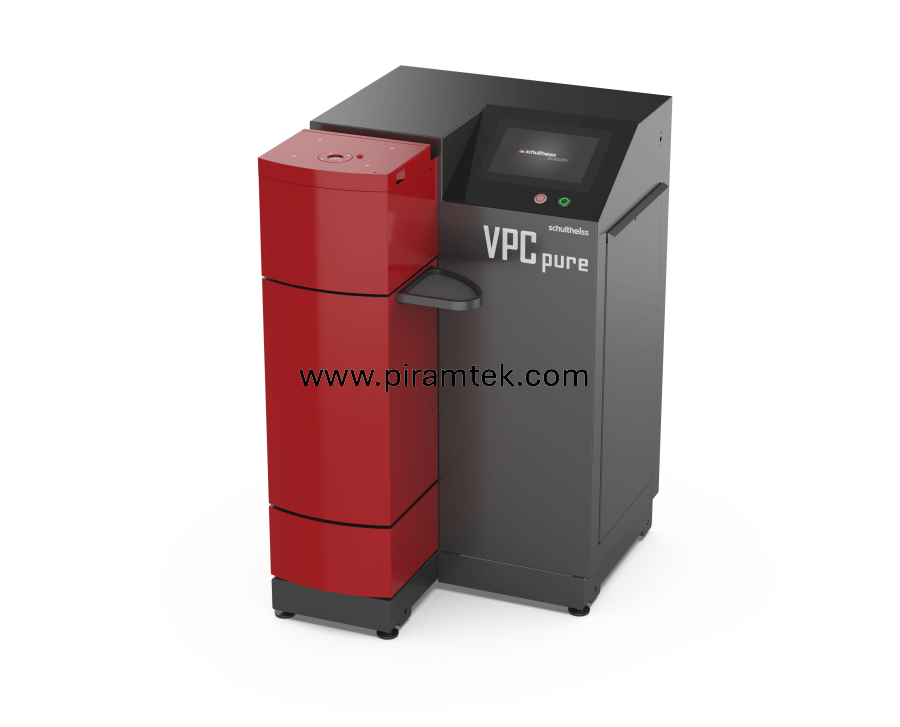

VPC PURe is a newly developed vacuum casting unit designed for simply handling, assembly and operation.
A Large touch screen with overhauled interface provides easy and intutive useability. This enables new and
experienced casters to use the machine to its full potential. Vast number of functions can be saved in different
programs within the system of the machine. We redesigned the melting chamber. The centric crucible and
the new position of the thermocouple makes maintaining and using the machine effortless. With the new version
of injection casting, it is possible to cast filigree items like wired desings or light-weight-jewelry with wall
thicknesses of down to 0,15 mm at low temperatures. The unit designed for casting flasks with top sealing
and all steps work completely automatically. Large volume production with reproducible results can be achieved
as the average cast time is less than 4 minutes per cast. Castable materials are silver, gold and
palladium-white-gold alloys. The unit can be supervised from every PC connected to internet after clearance from
customer IT with the help of an IP connection and Teamviewer software. This allows operational control, program
exchange and synchronization with multiple units. Operator assistance, service, maintenance operation and program
updates can be concluded by remote maintence.
| Main Power |
11 kW |
| Electrical Supply |
400 V (3 phase), 20A |
| Casting Temperature |
1050° C |
| Crucible Volume |
2v00 cm3 |
| Casting Quantity in 18 kt |
50 gr-2500 gr |
| Casting Quantity in Silver |
50 gr-2000 gr |
| Flask Diameter |
130 mm max. |
| Flask Height |
300 mm max. |
| Casting Pressure Max |
3 bar |
| Vacuum |
20 mbar |
| Dimensions |
750 x 860 x 1100 mm |
| Weight |
200 kg |
