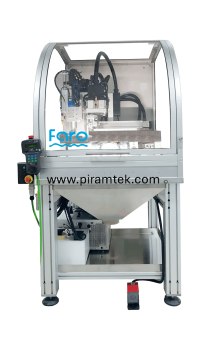

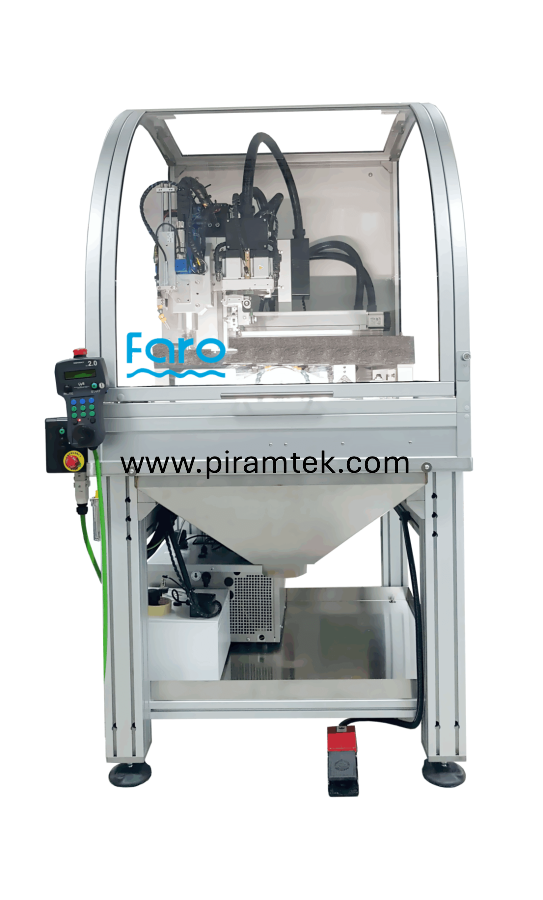

F35, mnufactured to meet the needs of jewelry and jewelry manufacturing industry. 5-Axis CNC Machine.
Thanks to its great versatility, it has distinctive features with its unique program called "PiGreco" allowing
customizable configuration.
TF35 is one of the most advanced machines in jewelry industry for engraving, diamond cutting,
drilling and grinding presetting. With bracelets and rings, it has a high performance for production.
| XYZ Axis Travel | 410x230x150 mm |
| A Rotation | 110°-120° |
| B Rotation | Sonsuz / Endless |
| XY Resolution | 1 µm |
| Z Resolution | 0.5 µm |
| A Resolution | 0,0001° |
| B Resolution | 0,0005° |
| XY Feed Rate | 45 mt/m |
| Z Feed Rate | 18 mt/m |
| A Feed Rate | 66 RpM |
| B Feed Rate | 66/500 RpM |
| Spindle Power | 1,2 - 1,8 kW |
| Max. Spindle Speed | 60.000 RpM |
| Max. Diameter Tool | Ø 8mm |
| Max. Tool Shaft | 6 mm |
| Tool Magazine | 9/13 pod. |
| Electrical Supply | 220 V |
| Interface | USB |
| Input Format | ISO G-code |
| Dimensions | 90x130x185 cm |
| Weight | 400 kg |
